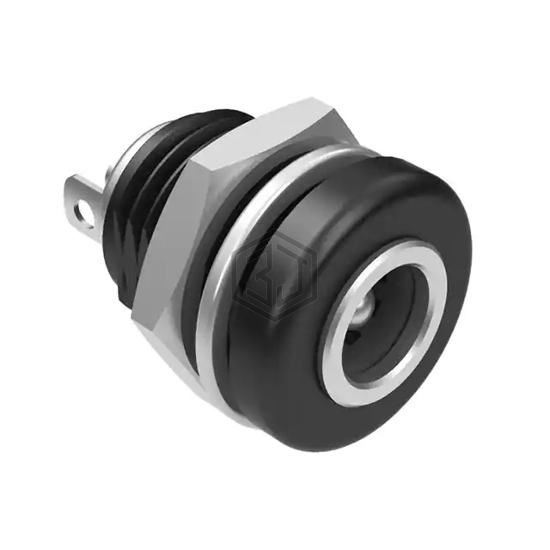

CONN JACK PNL MNT 5.5X2.1MM ISO
54-00151 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN JACK PNL MNT 5.5X2.1MM ISO. Key specifications: mounting type Panel Mount, voltage - rated 48V, current rating (amps) 7.5 A, termination Solder Cup.
In Stock: 5,113
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Solder Cup |
| Shielding | Unshielded |
| Features | Mounting Hardware |
| Insulation Color | Black |
| Voltage - Rated | 48V |
| Current Rating (Amps) | 7.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 54-00151 and get a quote within 24 hours.
