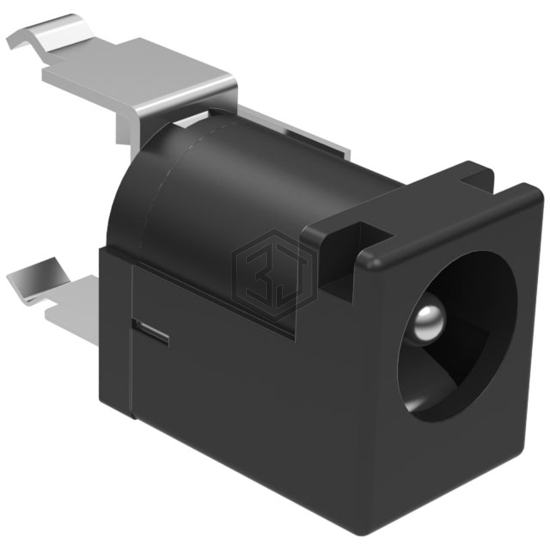

CONN JACK PCB W/BL 5.5X2.5MM
54-00147 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN JACK PCB W/BL 5.5X2.5MM. Key specifications: mounting type Through Hole, voltage - rated 48V, current rating (amps) 4.5 A, termination Kinked Pin.
In Stock: 1,914
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole |
| Mounting Feature | - |
| Termination | Kinked Pin |
| Shielding | Unshielded |
| Features | Board Lock |
| Insulation Color | Black |
| Voltage - Rated | 48V |
| Current Rating (Amps) | 4.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 54-00147 and get a quote within 24 hours.
