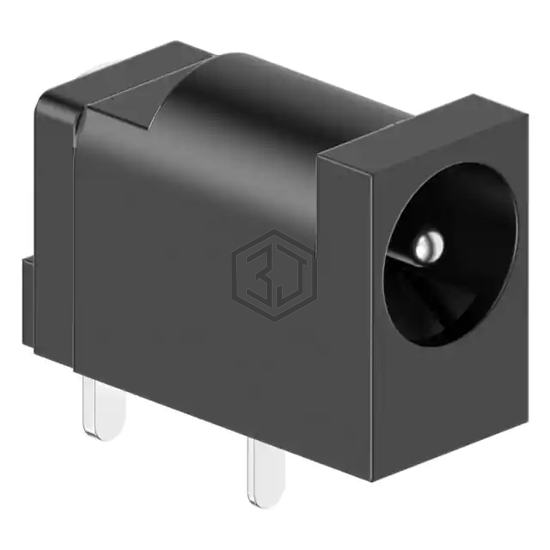

CONN JACK R/A PCB 3X1.1MM
54-00144 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN JACK R/A PCB 3X1.1MM. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 48V, current rating (amps) 3.5 A, termination Solder.
In Stock: 8,194
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.10mm ID (0.043"), 3.00mm OD (0.118") |
| Actual Diameter | 0.043" (1.10mm ID), 0.118" (3.00mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | Black |
| Voltage - Rated | 48V |
| Current Rating (Amps) | 3.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 54-00144 and get a quote within 24 hours.
