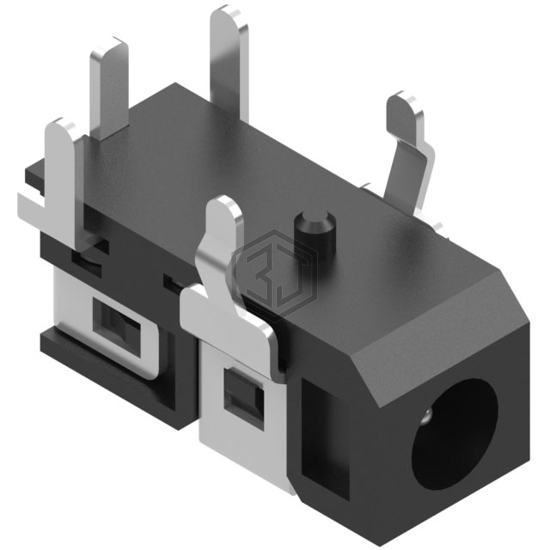

CONN JACK R/A PCB 2.35X0.7MM
54-00139 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN JACK R/A PCB 2.35X0.7MM. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 48V, current rating (amps) 5 A, termination Kinked Pin, Solder.
In Stock: 2,489
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 0.70mm ID (0.028"), 2.35mm OD (0.093") |
| Actual Diameter | 0.028" (0.70mm ID), 0.093" (2.35mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Kinked Pin, Solder |
| Shielding | Shielded |
| Features | Board Guide, Board Lock |
| Insulation Color | Black |
| Voltage - Rated | 48V |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 54-00139 and get a quote within 24 hours.
