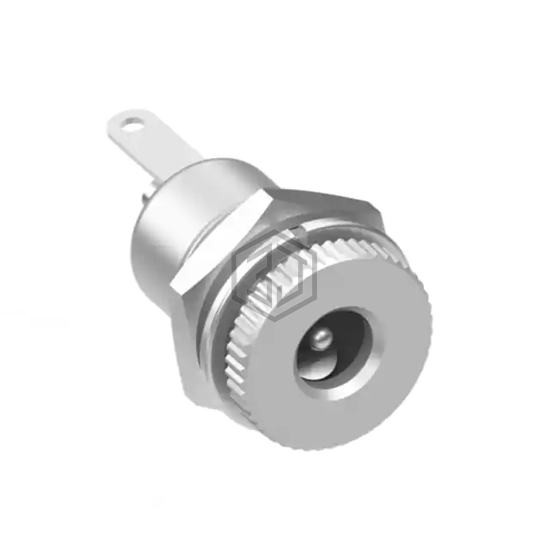

CONN PWR JACK 1.7X4.75MM SOLDER
54-00062 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN PWR JACK 1.7X4.75MM SOLDER. Key specifications: mounting type Panel Mount, voltage - rated 48VDC, current rating (amps) 6.5 A, termination Solder.
In Stock: 20,819
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3 |
| Actual Diameter | 0.065" (1.65mm ID), 0.195" (4.95mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Mounting Hardware |
| Insulation Color | - |
| Voltage - Rated | 48VDC |
| Current Rating (Amps) | 6.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 54-00062 and get a quote within 24 hours.
