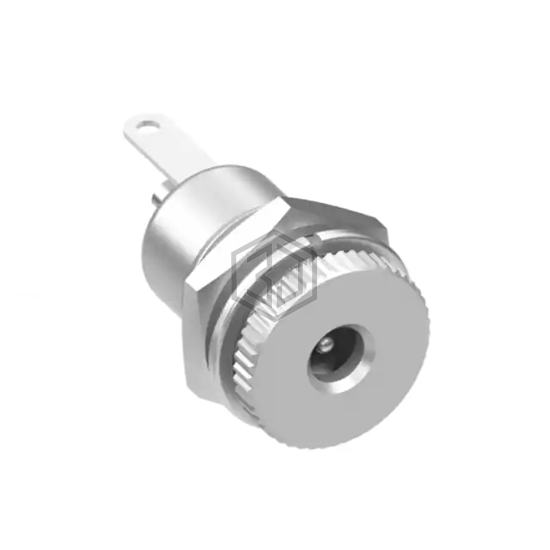

CONN PWR JACK 1.35X3.5MM SOLDER
54-00061 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN PWR JACK 1.35X3.5MM SOLDER. Key specifications: mounting type Panel Mount, voltage - rated 48VDC, current rating (amps) 7 A, termination Solder.
In Stock: 5,713
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.35mm ID (0.053"), 3.50mm OD (0.138") |
| Actual Diameter | 0.051" (1.30mm ID), 0.146" (3.70mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Mounting Hardware |
| Insulation Color | - |
| Voltage - Rated | 48VDC |
| Current Rating (Amps) | 7 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 54-00061 and get a quote within 24 hours.
