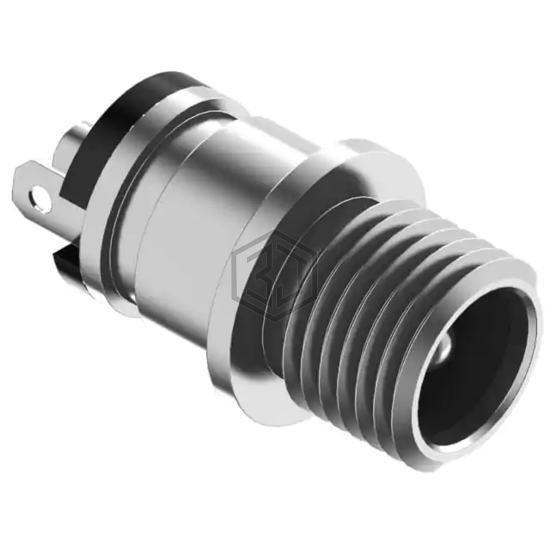

CONN JACK 2.5MM MOLD STYLE
50-00617 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN JACK 2.5MM MOLD STYLE. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 48VDC, current rating (amps) 7.5 A, termination Solder Cup, Solder Eyelet.
In Stock: 13,591
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.222" (5.65mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup, Solder Eyelet |
| Shielding | Unshielded |
| Features | Thread Lock |
| Insulation Color | - |
| Voltage - Rated | 48VDC |
| Current Rating (Amps) | 7.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
