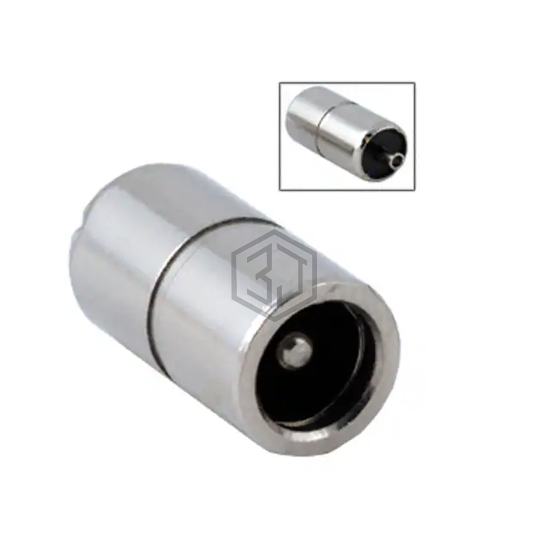

CONN PWR JACK 2.1X5.5MM SOLDER
50-00025 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN PWR JACK 2.1X5.5MM SOLDER. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 20VDC, current rating (amps) 7 A, termination Solder Cup.
In Stock: 3,814
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 20VDC |
| Current Rating (Amps) | 7 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
