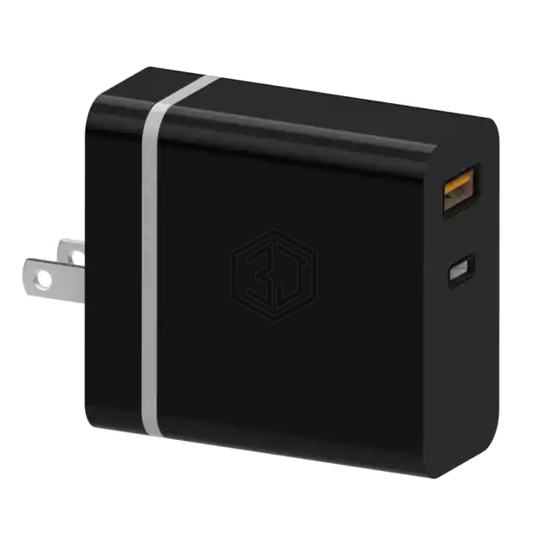

AC/DC WALL MNT ADAPT 5V-20V 42W
16-00242 is a AC DC Desktop, Wall Adapters manufactured by Tensility International Corp. AC/DC WALL MNT ADAPT 5V-20V 42W. Key specifications: operating temperature 0°C ~ 35°C, voltage - input 100 ~ 240 VAC, current - output (max) 3A, 3A, 2.5A, 2A, 1.5A, size / dimension 2.58" L x 2.36" W x 1.14" H (65.5mm x 60.0mm x 29.0mm).
In Stock: 283
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 5V, 9V, 12V, 15V, 20V |
| Current - Output (Max) | 3A, 3A, 2.5A, 2A, 1.5A |
| Power (Watts) | 42 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 35°C |
| Output Connector | USB A, C Receptacles |
| Cord Length | - |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 2.58" L x 2.36" W x 1.14" H (65.5mm x 60.0mm x 29.0mm) |
| Approval Agency | cULus, FCC |
| Standard Number | 62368-1 |
Submit your RFQ for 16-00242 and get a quote within 24 hours.
