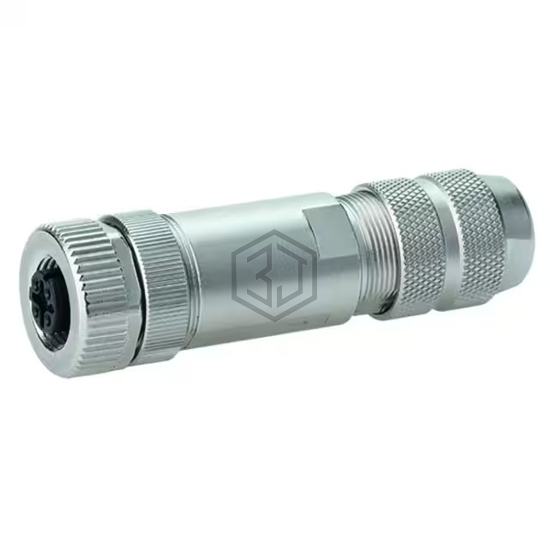

STX M12X1 CS D-COD. CAT.5
J80029A0310 is a Circular Connectors manufactured by Telegartner Inc. STX M12X1 CS D-COD. CAT.5. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 85°C, voltage rating 250V, color Silver.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 4 (Data) |
| Shell Size - Insert | M12-4 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Screw |
| Fastening Type | Threaded |
| Orientation | D |
| Primary Material | Metal |
| Shell Material | Brass and Zinc Die Cast |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 4A |
| Voltage Rating | 250V |
| Cable Opening | 0.197" ~ 0.315" (5.00mm ~ 8.00mm) |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for J80029A0310 and get a quote within 24 hours.
