TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOS SPDT 1.25A 9VDC

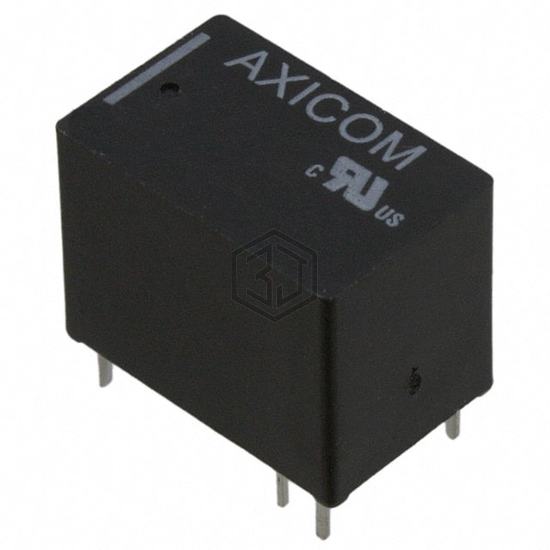

V23101D 105A201 is a Signal Relays, Up to 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOS SPDT 1.25A 9VDC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Palladium (AgPd), Gold (Au), termination style PC Pin.
In Stock: 7,308
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1.25 A |
| Switching Voltage | 125VAC, 120VDC - Max |
| Coil Current | 22.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 6.8 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Relay Type | General Purpose |
Submit your RFQ for V23101D 105A201 and get a quote within 24 hours.
