TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 1A 1.5VDC

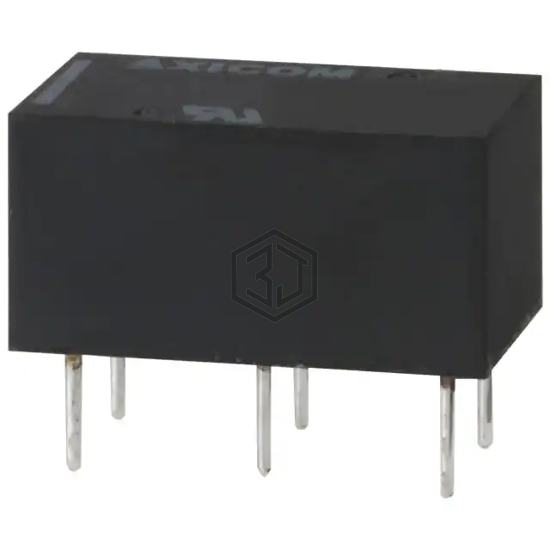

V23026A1007B201 is a Signal Relays, Up to 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPDT 1A 1.5VDC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au), termination style PC Pin.
In Stock: 2,756
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 1.5VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 150VAC, 125VDC - Max |
| Coil Current | 42 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 1.13 VDC |
| Must Release Voltage | 0.15 VDC |
| Operate Time | 2 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) |
| Relay Type | General Purpose |
Submit your RFQ for V23026A1007B201 and get a quote within 24 hours.
