TE Connectivity Potter & Brumfield Relays

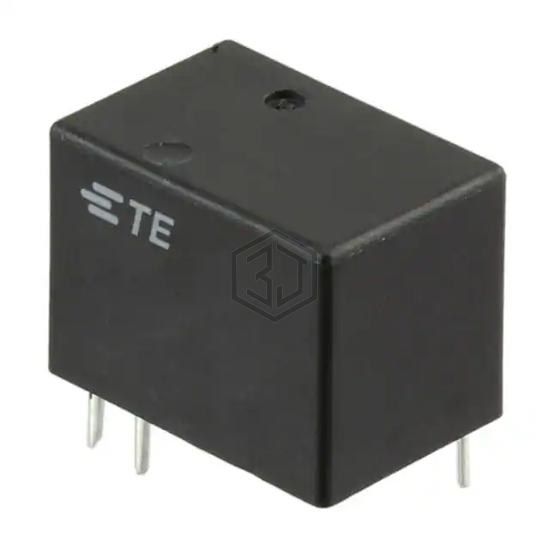

RELAY TELECOM SPDT 1A 9VDC
OUAZ-SS-109L,900 is a Signal Relays, Up to 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY TELECOM SPDT 1A 9VDC. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 70°C, contact material Silver Palladium (AgPd), Gold (Au), termination style PC Pin.
In Stock: 1,757
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 120VAC, 24VDC - Max |
| Coil Current | 22.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 10 ms |
| Release Time | 7 ms |
| Operating Temperature | -30°C ~ 70°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Relay Type | Telecom |
Submit your RFQ for OUAZ-SS-109L,900 and get a quote within 24 hours.
