TE Connectivity Measurement Specialties

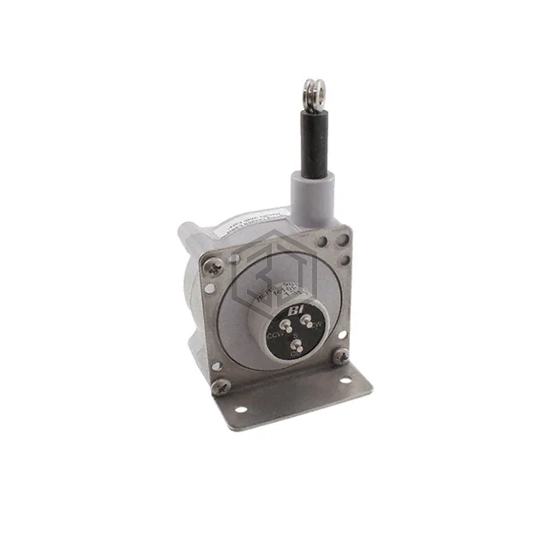

SENSOR LINEAR 120MM SOLDER LUG
SP1-4 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR LINEAR 120MM SOLDER LUG. Key specifications: mounting type Panel Mount, operating temperature -18°C ~ 70°C, voltage - supply 30V, package / case Box with Connector.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | Linear Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 120mm (0 ~ 4.75") |
| Output | Analog Voltage |
| Output Signal | - |
| Actuator Type | String Potentiometer |
| Linearity | - |
| Resistance | 10 kOhms |
| Resistance Tolerance | ±10% |
| Voltage - Supply | 30V |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Operating Temperature | -18°C ~ 70°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
Submit your RFQ for SP1-4 and get a quote within 24 hours.
