TE Connectivity Measurement Specialties

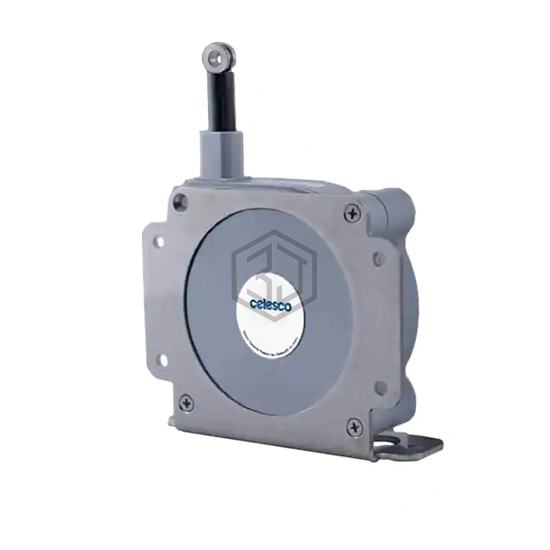

SENSOR LINEAR 3048MM CONNECTOR
SGD-120-3 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR LINEAR 3048MM CONNECTOR. Key specifications: mounting type Custom, operating temperature -18°C ~ 70°C, voltage - supply 8V ~ 40V, package / case Box with Connector.
In Stock: 6,354
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | Linear Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 3048mm (0 ~ 120") |
| Output | Analog Voltage, 4 ~ 20mA |
| Output Signal | - |
| Actuator Type | String Potentiometer |
| Linearity | - |
| Resistance | 10 kOhms |
| Resistance Tolerance | ±10% |
| Voltage - Supply | 8V ~ 40V |
| Mounting Type | Custom |
| Termination Style | Connector |
| Operating Temperature | -18°C ~ 70°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
Submit your RFQ for SGD-120-3 and get a quote within 24 hours.
