TE Connectivity Measurement Specialties

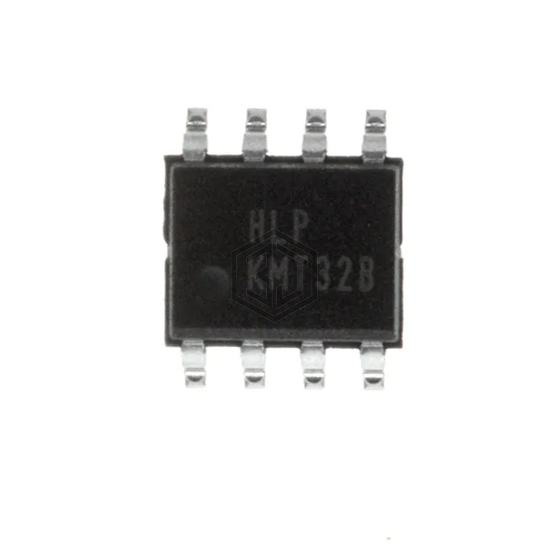

SENSOR ANGULAR 180 DEGREES 8SO
G-MRCO-015 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR ANGULAR 180 DEGREES 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - supply 5V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 1,726
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | Angle |
| Technology | Magnetoresistive |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180° |
| Linear Range | - |
| Output | Wheatstone Bridge |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±0.2% |
| Resistance | 3.6 kOhms |
| Resistance Tolerance | - |
| Voltage - Supply | 5V |
| Mounting Type | Surface Mount |
| Termination Style | SMD (SMT) Tab |
| Operating Temperature | -40°C ~ 150°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
Submit your RFQ for G-MRCO-015 and get a quote within 24 hours.
