TE Connectivity Measurement Specialties

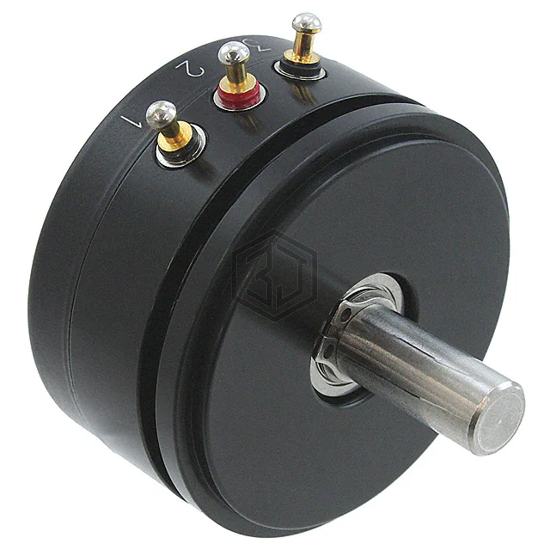

SENSOR ROTARY 340DEG SLDR TURRET
6209-1002-030 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR ROTARY 340DEG SLDR TURRET. Key specifications: mounting type Custom, operating temperature -65°C ~ 125°C, package / case Module, Round Shaft, termination style Solder Turret.
In Stock: 7,334
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | Rotary Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | 0° ~ 340°, Continuous |
| Linear Range | - |
| Output | Resistive |
| Output Signal | Clockwise Increase |
| Actuator Type | Round Shaft |
| Linearity | ±0.5% |
| Resistance | 5 kOhms |
| Resistance Tolerance | ±10% |
| Voltage - Supply | - |
| Mounting Type | Custom |
| Termination Style | Solder Turret |
| Operating Temperature | -65°C ~ 125°C |
| Package / Case | Module, Round Shaft |
| Supplier Device Package | - |
Submit your RFQ for 6209-1002-030 and get a quote within 24 hours.
