TE Connectivity AMP Connectors
H10B-SDR-LB-M20

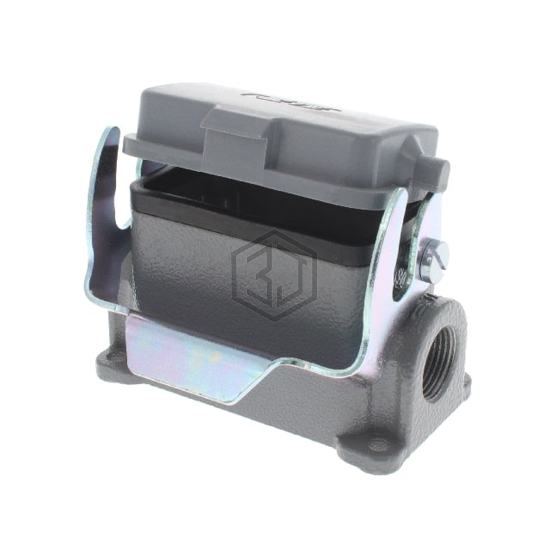

T1620103120-000 is a Heavy Duty Connectors - Housings, Hoods, Bases manufactured by TE Connectivity AMP Connectors. H10B-SDR-LB-M20. Key specifications: operating temperature -40°C ~ 125°C, housing material Aluminum Alloy, Die Cast, size / dimension 3.701" L x 2.047" W x 2.386" H (94.00mm x 52.00mm x 60.60mm), ingress protection IP65 - Dust Tight, Water Resistant.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Base - Box Mount |
| Style | Side Entry |
| Size | H10B |
| Lock Location | Locking Clip (1) on Base Bottom |
| Thread Size | M20 |
| Size / Dimension | 3.701" L x 2.047" W x 2.386" H (94.00mm x 52.00mm x 60.60mm) |
| Housing Color | Gray |
| Features | Cover |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated |
| Operating Temperature | -40°C ~ 125°C |
Submit your RFQ for T1620103120-000 and get a quote within 24 hours.
