TE Connectivity AMP Connectors

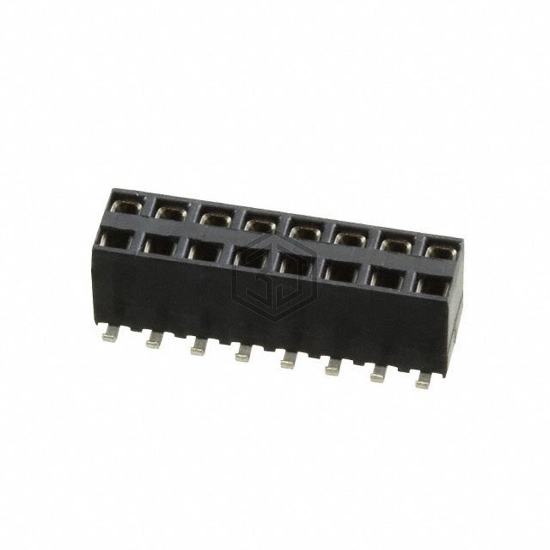

CONN RCPT 16POS 0.1 GOLD SMD
969973-8 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 16POS 0.1 GOLD SMD. Key specifications: mounting type Surface Mount, termination Solder, number of positions 16, connector type Receptacle, Bottom or Top Entry.
In Stock: 2,019
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Insulation Color | Black |
| Insulation Height | 0.244" (6.20mm) |
| Contact Length - Post | - |
| Operating Temperature | - |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 969973-8 and get a quote within 24 hours.
