TE Connectivity AMP Connectors
CONN HEADER VERT 22POS 5MM

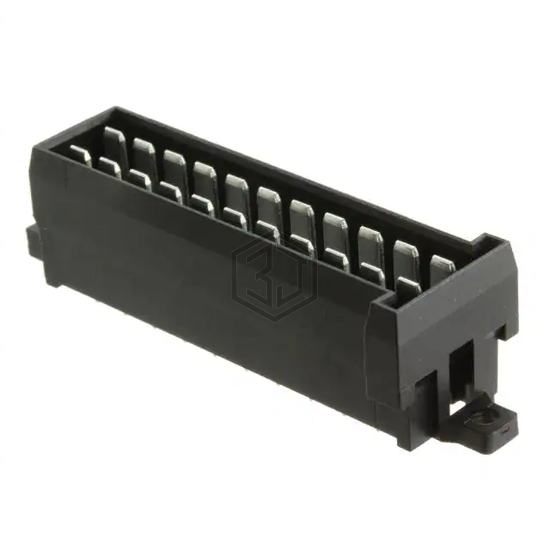

963357-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 22POS 5MM. Key specifications: mounting type Through Hole, contact material Copper Zinc, termination Solder, number of positions 22.
In Stock: 872
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Contact Type | Tab |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.217" (5.51mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Contact Length - Mating | 0.366" (9.30mm) |
| Contact Length - Post | 0.134" (3.40mm) |
| Overall Contact Length | - |
| Insulation Height | 0.720" (18.30mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Zinc |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide, Mounting Flange |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 963357-1 and get a quote within 24 hours.
