TE Connectivity AMP Connectors
CONN HEADER R/A 2POS 2.54MM

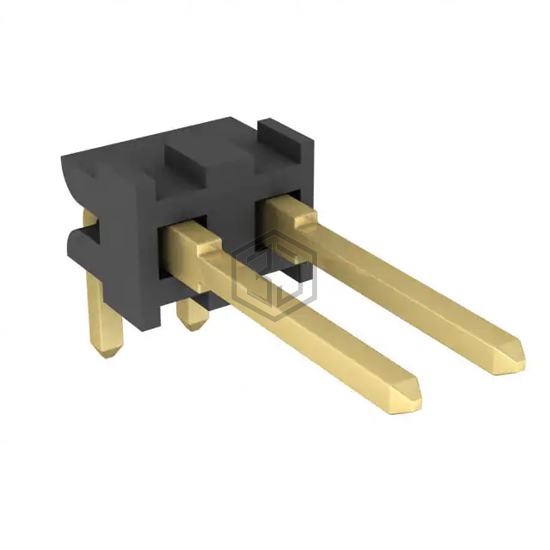

87232-2 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER R/A 2POS 2.54MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -65°C ~ 105°C, contact material Phosphor Bronze, current rating (amps) 3A.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.318" (8.08mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | - |
| Insulation Height | 0.138" (3.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | - |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
Submit your RFQ for 87232-2 and get a quote within 24 hours.
