CONN HEADER VERT 6POS 2.54MM

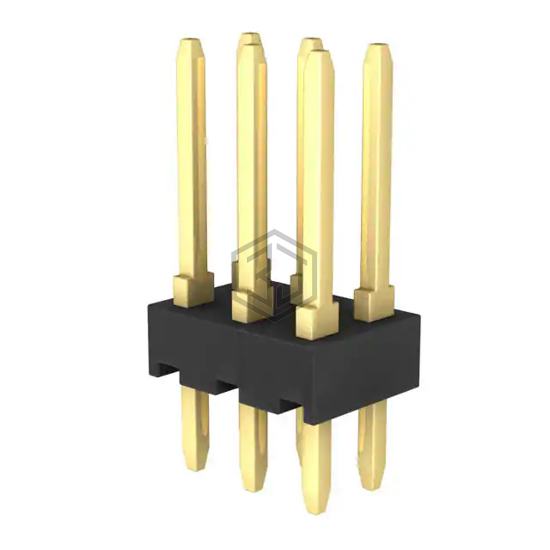

87227-3 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 6POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 105°C, contact material Phosphor Bronze, current rating (amps) 3A.
In Stock: 5,740
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.318" (8.08mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | 0.533" (13.55mm) |
| Insulation Height | 0.090" (2.29mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
