TE Connectivity AMP Connectors
CONN HEADER VERT 4POS 2.54MM

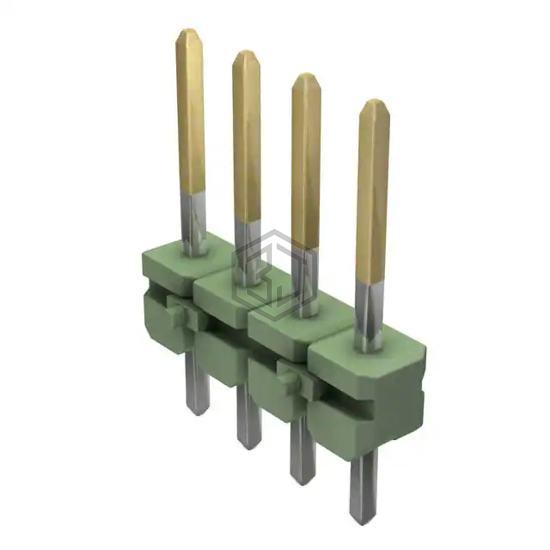

825433-4 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 4POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 105°C, contact material Brass, current rating (amps) 5A.
In Stock: 3,038
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.264" (6.70mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | 0.500" (12.70mm) |
| Insulation Height | 0.110" (2.79mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | - |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Green |
| Current Rating (Amps) | 5A |
| Voltage Rating | - |
Submit your RFQ for 825433-4 and get a quote within 24 hours.
