TE Connectivity AMP Connectors
CONN HEADER VERT 40POS

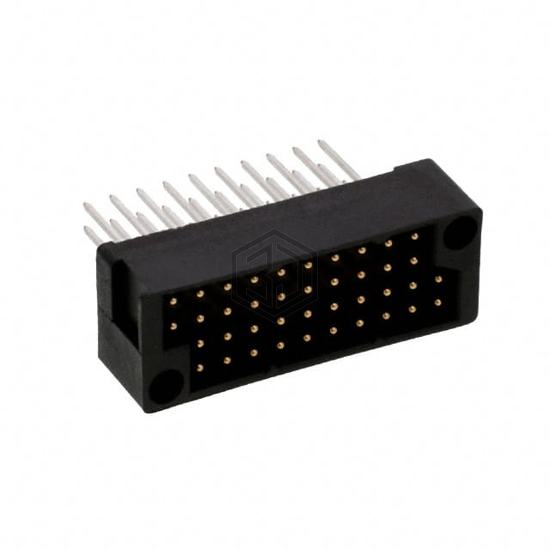

825308-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 40POS. Key specifications: mounting type Through Hole, contact material Copper Tin, termination Wire Wrap, number of positions 40.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 40 |
| Number of Rows | 4 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Wire Wrap |
| Fastening Type | - |
| Contact Length - Mating | 0.441" (11.20mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.689" (17.50mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Tin |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 825308-1 and get a quote within 24 hours.
