TE Connectivity AMP Connectors

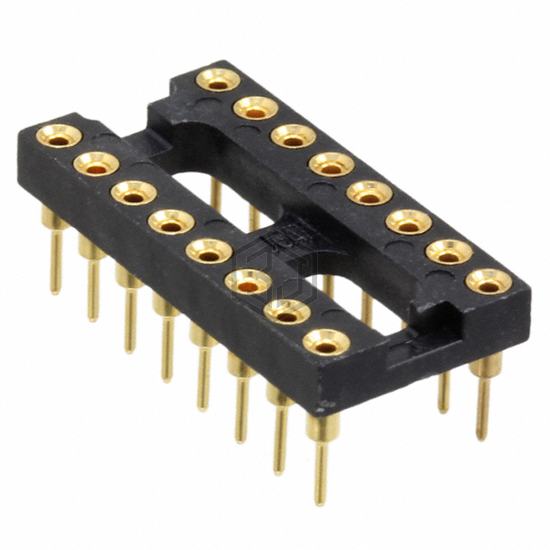

CONN IC DIP SOCKET 16POS GOLD
816-AG10D-ES is a Sockets for ICs, Transistors manufactured by TE Connectivity AMP Connectors. CONN IC DIP SOCKET 16POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, housing material Polyester, termination Solder.
In Stock: 920
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 16 (2 x 8) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 25.0µin (0.63µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | - |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Copper Alloy |
| Housing Material | Polyester |
| Operating Temperature | -55°C ~ 105°C |
Submit your RFQ for 816-AG10D-ES and get a quote within 24 hours.
