TE Connectivity AMP Connectors

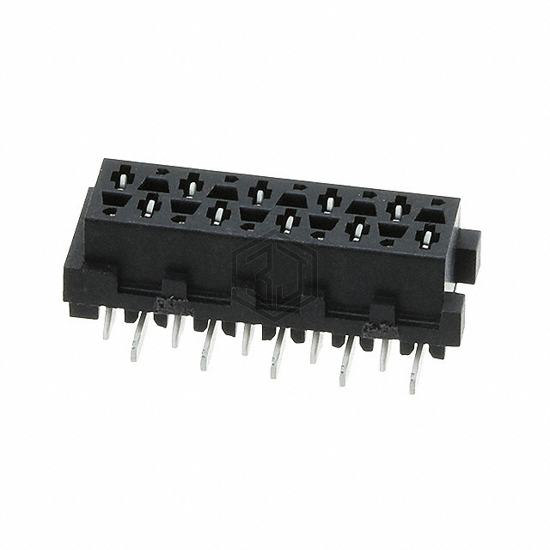

CONN RCPT 10POS 0.1 TIN SMD
8-2178711-0 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 10POS 0.1 TIN SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage rating 100VDC, termination Solder.
In Stock: 68,079
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board or Cable |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Insulation Color | Black |
| Insulation Height | 0.209" (5.30mm) |
| Contact Length - Post | - |
| Operating Temperature | -30°C ~ 85°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | - |
| Voltage Rating | 100VDC |
Submit your RFQ for 8-2178711-0 and get a quote within 24 hours.
