TE Connectivity AMP Connectors
CONN RCPT 8POS 0.1 TIN SMD

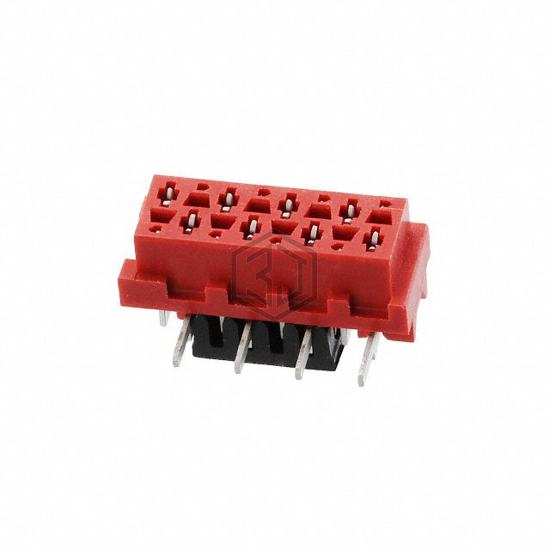

7-188431-8 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 8POS 0.1 TIN SMD. Key specifications: mounting type Surface Mount, Through Board, operating temperature -40°C ~ 105°C, voltage rating 100VDC, termination Solder.
In Stock: 13,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Bottom Entry |
| Contact Type | Forked |
| Style | Board to Board or Cable |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount, Through Board |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Insulation Color | Red |
| Insulation Height | 0.154" (3.90mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | - |
| Voltage Rating | 100VDC |
Submit your RFQ for 7-188431-8 and get a quote within 24 hours.
