TE Connectivity AMP Connectors

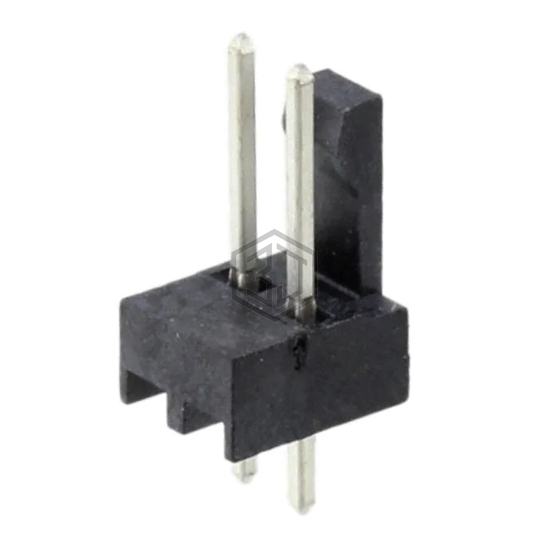

CONN HEADER VERT 2POS 2.54MM
647050-2 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 2POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 250VAC, contact material Copper Alloy.
In Stock: 934
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.290" (7.37mm) |
| Contact Length - Post | 0.135" (3.43mm) |
| Overall Contact Length | 0.550" (13.97mm) |
| Insulation Height | 0.347" (8.81mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA4T), Nylon 4T |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250VAC |
