TE Connectivity AMP Connectors
CONN HEADER R/A 6POS 2.54MM

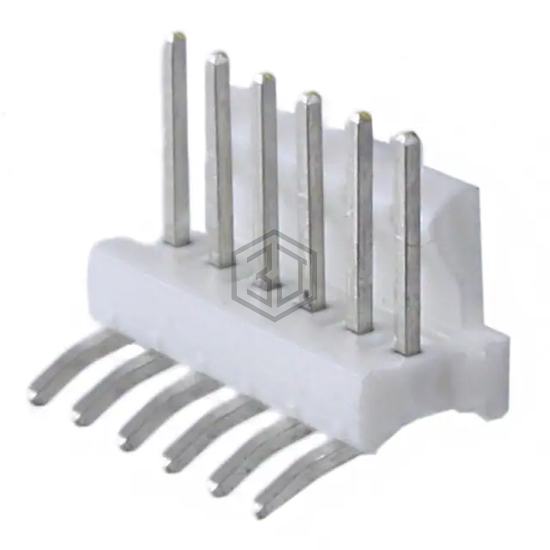

644875-6 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER R/A 6POS 2.54MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 105°C, voltage rating 250VAC, contact material Copper Alloy.
In Stock: 6,946
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.295" (7.49mm) |
| Contact Length - Post | 0.135" (3.43mm) |
| Overall Contact Length | - |
| Insulation Height | 0.225" (5.72mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250VAC |
Submit your RFQ for 644875-6 and get a quote within 24 hours.
