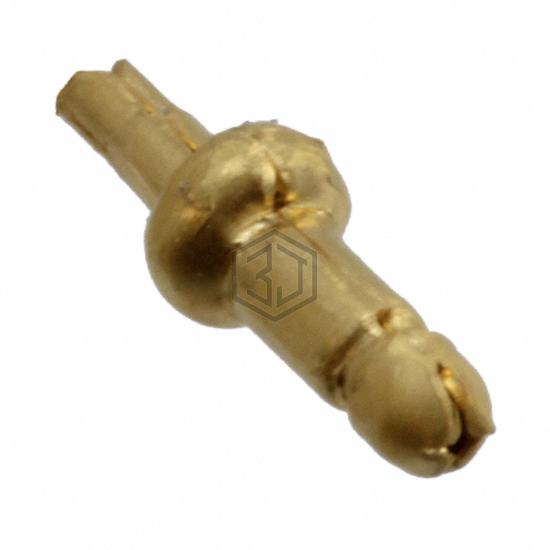

TE Connectivity AMP Connectors
CONN PC PIN CIRC 0.058DIA GOLD
640967-2 is a Terminals - PC Pin, Single Post Connectors manufactured by TE Connectivity AMP Connectors. CONN PC PIN CIRC 0.058DIA GOLD. Key specifications: mounting type Through Hole, contact material Phosphor Bronze, termination Clinch Fit.
In Stock: 12,875
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single Post |
| Terminal Style | Flanged |
| Pin Size - Above Flange | 0.058" (1.47mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.160" (4.06mm) |
| Length - Below Flange | 0.100" (2.54mm) |
| Length - Overall | 0.310" (7.87mm) |
| Flange Diameter | 0.090" (2.29mm) |
| Mounting Hole Diameter | 0.046" ~ 0.050" (1.17mm ~ 1.27mm) |
| Mounting Type | Through Hole |
| Termination | Clinch Fit |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
Submit your RFQ for 640967-2 and get a quote within 24 hours.
