TE Connectivity AMP Connectors

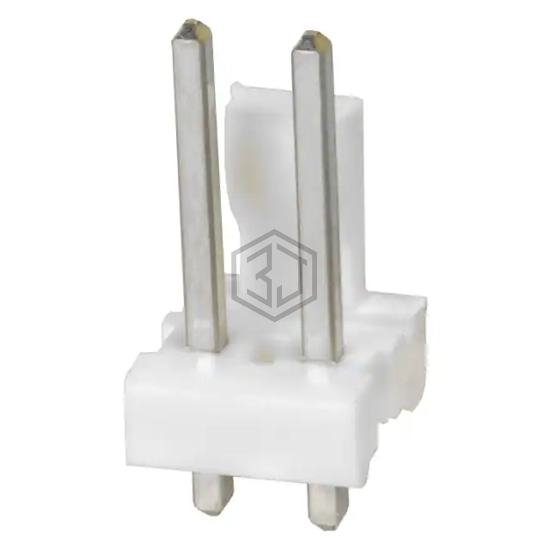

CONN HEADER VERT 2POS 3.96MM
640445-2 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 2POS 3.96MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 600VAC, contact material Copper Alloy.
In Stock: 103,387
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.156" (3.96mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.400" (10.16mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | 0.650" (16.51mm) |
| Insulation Height | 0.425" (10.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600VAC |
Submit your RFQ for 640445-2 and get a quote within 24 hours.
