TE Connectivity AMP Connectors
CONN PC PIN CIRC 0.093DIA TIN

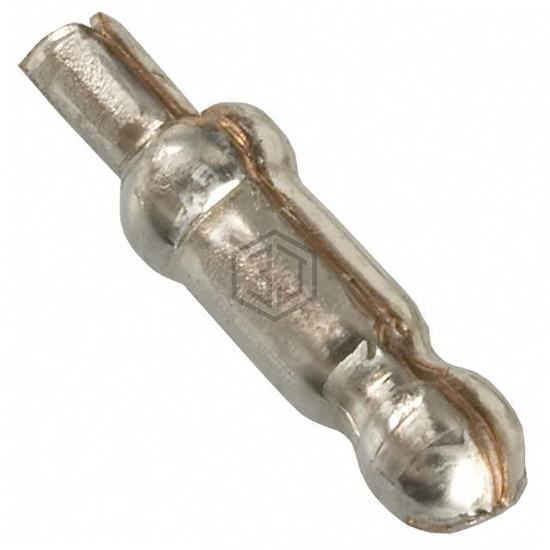

61137-1 is a Terminals - PC Pin, Single Post Connectors manufactured by TE Connectivity AMP Connectors. CONN PC PIN CIRC 0.093DIA TIN. Key specifications: mounting type Through Hole, contact material Phosphor Bronze, termination Clinch Fit.
In Stock: 112,587
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single Post |
| Terminal Style | Flanged |
| Pin Size - Above Flange | 0.093" (2.36mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.245" (6.22mm) |
| Length - Below Flange | - |
| Length - Overall | 0.405" (10.29mm) |
| Flange Diameter | 0.115" (2.92mm) |
| Mounting Hole Diameter | 0.067" ~ 0.073" (1.70mm ~ 1.85mm) |
| Mounting Type | Through Hole |
| Termination | Clinch Fit |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
Submit your RFQ for 61137-1 and get a quote within 24 hours.
