TE Connectivity AMP Connectors
CONN PC PIN CIRC 0.058DIA TIN

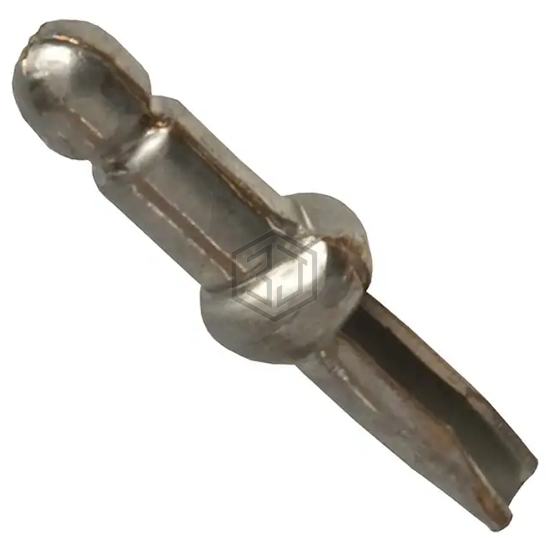

60802-2 is a Terminals - PC Pin, Single Post Connectors manufactured by TE Connectivity AMP Connectors. CONN PC PIN CIRC 0.058DIA TIN. Key specifications: mounting type Through Hole, contact material Phosphor Bronze, termination Press-Fit.
In Stock: 18,270
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single Post |
| Terminal Style | Flanged |
| Pin Size - Above Flange | 0.058" (1.47mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.160" (4.06mm) |
| Length - Below Flange | 0.150" (3.81mm) |
| Length - Overall | 0.375" (9.53mm) |
| Flange Diameter | 0.090" (2.29mm) |
| Mounting Hole Diameter | 0.046" ~ 0.050" (1.17mm ~ 1.27mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" ~ 0.093" (1.57mm ~ 2.36mm) |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
Submit your RFQ for 60802-2 and get a quote within 24 hours.
