TE Connectivity AMP Connectors

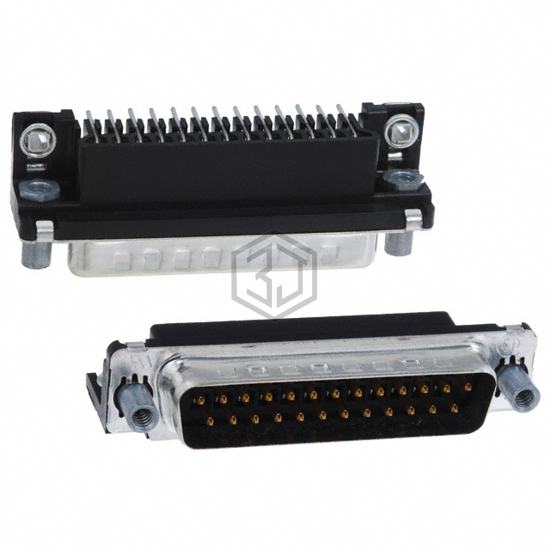

CONN D-SUB PLUG 25POS R/A SLDR
5747842-5 is a D-Sub Connectors manufactured by TE Connectivity AMP Connectors. CONN D-SUB PLUG 25POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 6A, termination Solder, number of positions 25.
In Stock: 324
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 6A |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Board Lock, Ground Strap, Grounding Indents |
Submit your RFQ for 5747842-5 and get a quote within 24 hours.
