TE Connectivity AMP Connectors

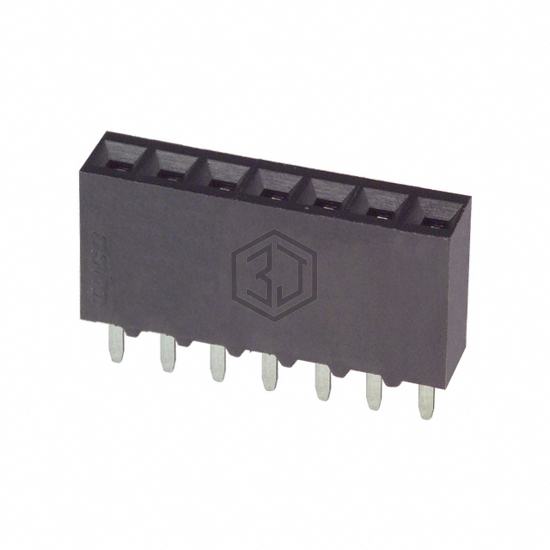

CONN RCPT 7POS 0.1 GOLD PCB
534237-5 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 7POS 0.1 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, current rating (amps) 2A, termination Solder.
In Stock: 10,180
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.340" (8.64mm) |
| Contact Length - Post | 0.115" (2.92mm) |
| Operating Temperature | -65°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
Submit your RFQ for 534237-5 and get a quote within 24 hours.
