TE Connectivity AMP Connectors
CONN RCPT 6POS 0.15 GOLD PCB

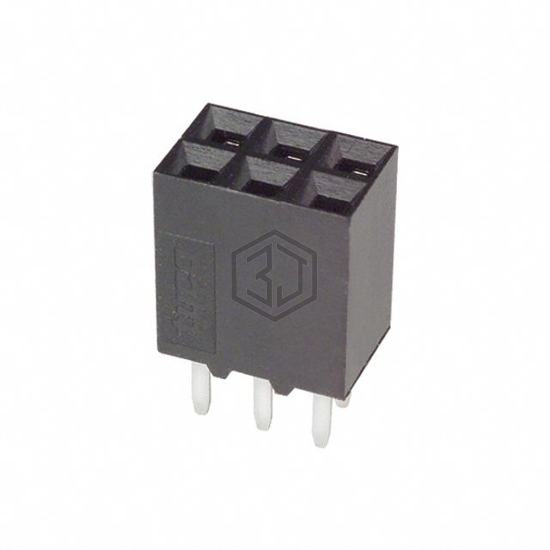

533034-1 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 6POS 0.15 GOLD PCB. Key specifications: mounting type Through Hole, termination Solder, number of positions 6, connector type Receptacle.
In Stock: 1,595
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.150" (3.81mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.150" (3.81mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.335" (8.51mm) |
| Contact Length - Post | 0.140" (3.56mm) |
| Operating Temperature | - |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 533034-1 and get a quote within 24 hours.
