TE Connectivity AMP Connectors
CONN HEADER VERT 50POS 2.54MM

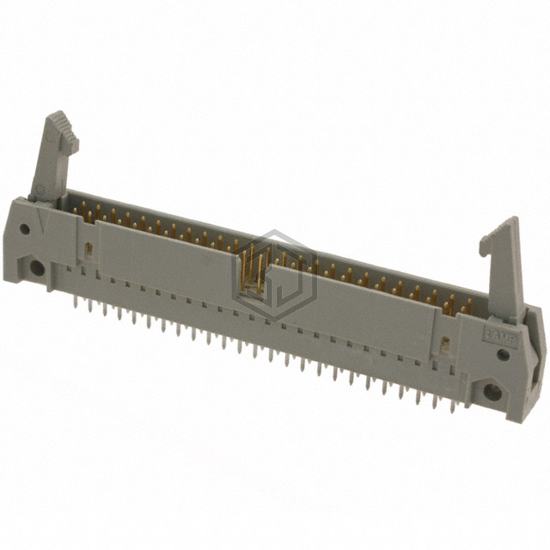

5-828590-0 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 50POS 2.54MM. Key specifications: mounting type Through Hole, contact material Brass, termination Solder, number of positions 50.
In Stock: 7,373
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks |
| Contact Length - Mating | 0.246" (6.25mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.652" (16.56mm) |
| Insulation Height | 0.346" (8.80mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyester, Glass Filled |
| Features | Keying Slot, Mounting Flange |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 5-828590-0 and get a quote within 24 hours.
