TE Connectivity AMP Connectors
CONN RCPT 50POS 0.1 GOLD PCB

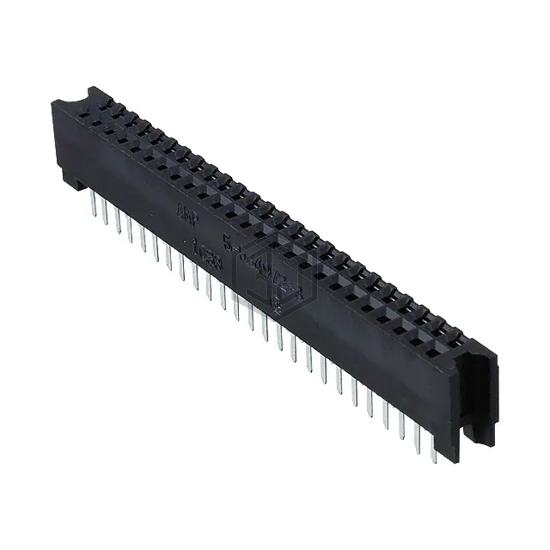

5-534972-3 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 50POS 0.1 GOLD PCB. Key specifications: mounting type Through Hole, termination Solder, number of positions 50, connector type Receptacle.
In Stock: 1,511
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.410" (10.41mm) |
| Contact Length - Post | 0.115" (2.92mm) |
| Operating Temperature | - |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Guide Pin Ears |
| Current Rating (Amps) | - |
| Voltage Rating | - |
