TE Connectivity AMP Connectors

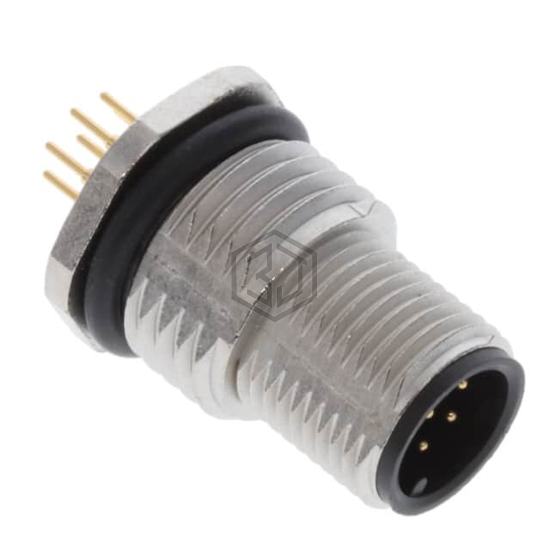

M12 MALE PNL.A CODE.8P.PCB TYPE.
5-2271140-2 is a Circular Connectors manufactured by TE Connectivity AMP Connectors. M12 MALE PNL.A CODE.8P.PCB TYPE.. Key specifications: mounting type Panel Mount, Through Hole, operating temperature -40°C ~ 85°C, voltage rating 60VAC/DC, color Silver.
In Stock: 89
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Solder |
| Fastening Type | Threaded |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | - |
| Shielding | Unshielded |
| Current Rating (Amps) | 2A |
| Voltage Rating | 60VAC/DC |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for 5-2271140-2 and get a quote within 24 hours.
