TE Connectivity AMP Connectors

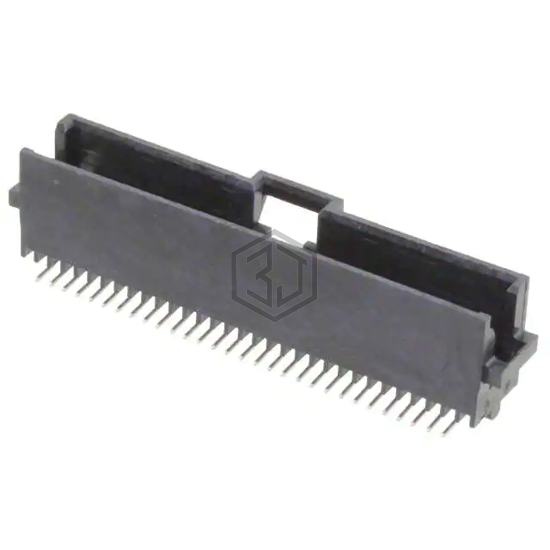

CONN HEADER SMD 60POS 1.27MM
5-147377-6 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER SMD 60POS 1.27MM. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 105°C, voltage rating 30VAC, contact material Copper Alloy.
In Stock: 158
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.125" (3.18mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.435" (11.05mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyphthalamide (PPA) |
| Features | Pick and Place |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | 30VAC |
Submit your RFQ for 5-147377-6 and get a quote within 24 hours.
