TE Connectivity AMP Connectors

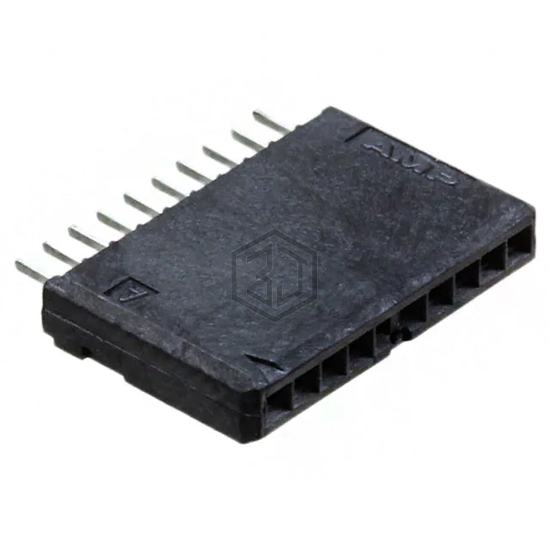

CONN RCPT 10POS 0.05 GOLD PCB
5-104192-2 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 10POS 0.05 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 105°C, voltage rating 30VAC, current rating (amps) 1A.
In Stock: 2,491
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.350" (8.89mm) |
| Contact Length - Post | 0.100" (2.54mm) |
| Operating Temperature | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 11.43mm, 12.57mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | 30VAC |
Submit your RFQ for 5-104192-2 and get a quote within 24 hours.
