TE Connectivity AMP Connectors

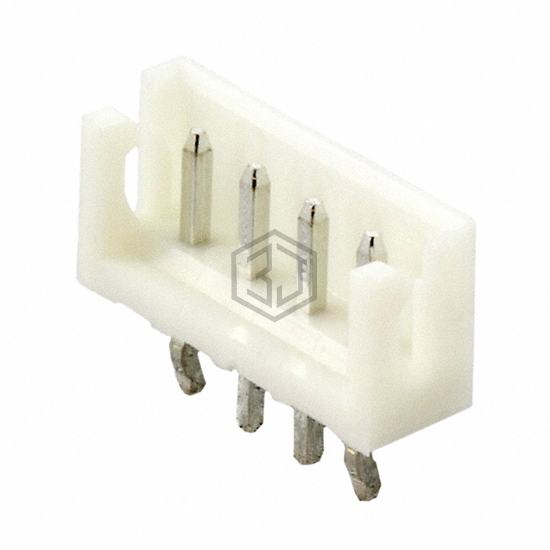

CONN HEADER VERT 4POS 2.5MM
440052-4 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 4POS 2.5MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating 250V, contact material Brass.
In Stock: 47,473
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.136" (3.45mm) |
| Contact Length - Post | 0.134" (3.40mm) |
| Overall Contact Length | 0.335" (8.51mm) |
| Insulation Height | 0.236" (6.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
Submit your RFQ for 440052-4 and get a quote within 24 hours.
