TE Connectivity AMP Connectors

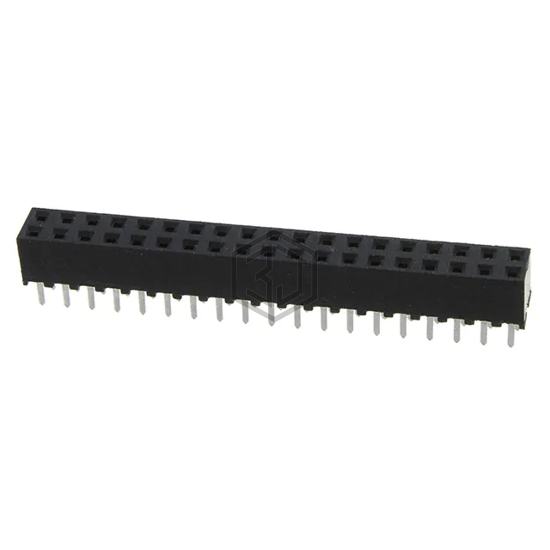

CONN RCPT 38POS 0.079 GOLD PCB
4-1734506-2 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 38POS 0.079 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 250VAC, termination Solder.
In Stock: 9,341
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 38 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Insulation Color | Black |
| Insulation Height | 0.177" (4.50mm) |
| Contact Length - Post | 0.102" (2.60mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | 250VAC |
Submit your RFQ for 4-1734506-2 and get a quote within 24 hours.
