TE Connectivity AMP Connectors

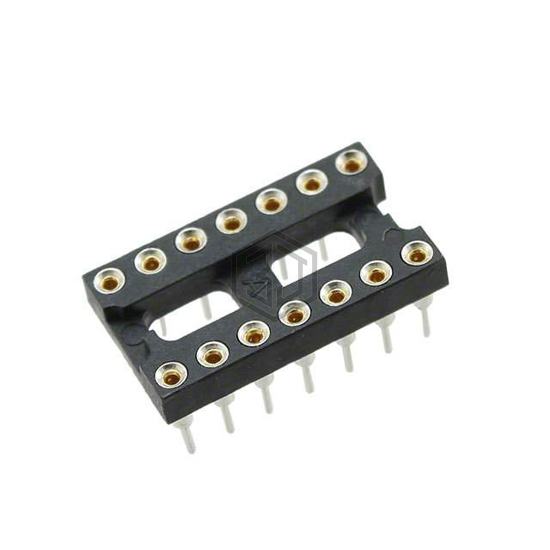

CONN IC DIP SOCKET 14POS GOLD
4-1571552-2 is a Sockets for ICs, Transistors manufactured by TE Connectivity AMP Connectors. CONN IC DIP SOCKET 14POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, housing material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, termination Solder.
In Stock: 1,721
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 14 (2 x 7) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 20.0µin (0.51µm) |
| Contact Material - Post | Copper |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Operating Temperature | -55°C ~ 105°C |
Submit your RFQ for 4-1571552-2 and get a quote within 24 hours.
