TE Connectivity AMP Connectors
CONN HDR 80POS 0.1 STACK T/H

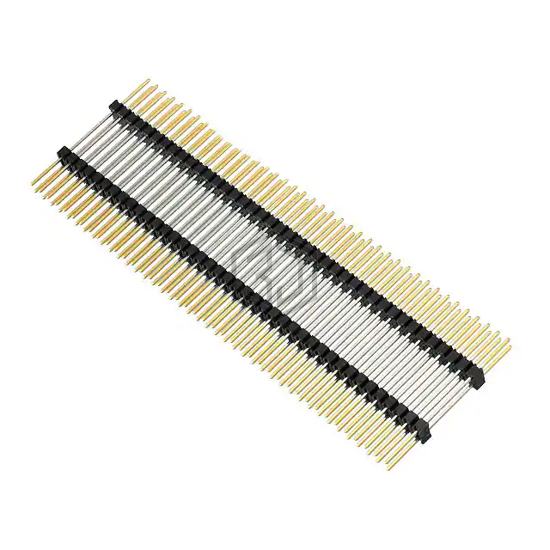

4-146507-0 is a Rectangular Connectors - Board Spacers, Stackers (Board to Board) manufactured by TE Connectivity AMP Connectors. CONN HDR 80POS 0.1 STACK T/H. Key specifications: mounting type Through Hole, color Black, termination Solder, number of positions 80.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Positions | 80 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Length - Overall Pin | 1.330" (33.782mm) |
| Length - Post (Mating) | 0.330" (8.382mm) |
| Length - Stack Height | 0.670" (17.018mm) |
| Length - Tail | 0.330" (8.382mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 15.0µin (0.38µm) |
| Color | Black |
Submit your RFQ for 4-146507-0 and get a quote within 24 hours.
