TE Connectivity AMP Connectors
CONN HDR 9POS 0.24 TIN PCB

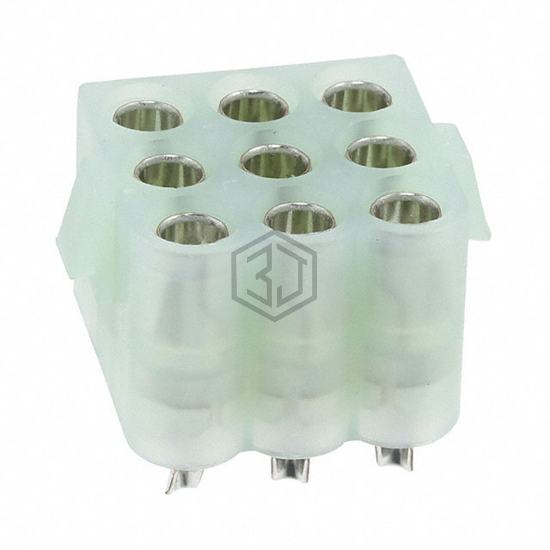

365046-1 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN HDR 9POS 0.24 TIN PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, termination Solder, number of positions 9.
In Stock: 501
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.240" (6.10mm) |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.240" (6.10mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Natural |
| Insulation Height | 0.571" (14.50mm) |
| Contact Length - Post | 0.161" (4.09mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-2 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 365046-1 and get a quote within 24 hours.
