TE Connectivity AMP Connectors

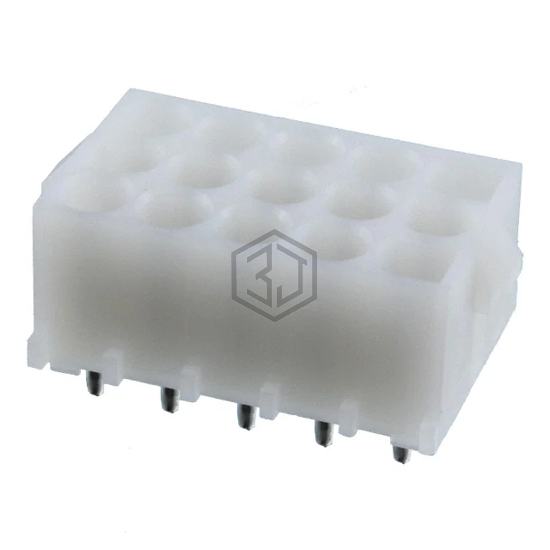

CONN SOCKET 15POS 0.25 GOLD PCB
350765-5 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN SOCKET 15POS 0.25 GOLD PCB. Key specifications: mounting type Through Hole, termination Solder, number of positions 15, connector type Socket.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 15 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.250" (6.35mm) |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.250" (6.35mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Natural |
| Insulation Height | 0.580" (14.73mm) |
| Contact Length - Post | 0.155" (3.94mm) |
| Operating Temperature | - |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 350765-5 and get a quote within 24 hours.
