TE Connectivity AMP Connectors
CONN HDR 3POS 0.25 GOLD PCB

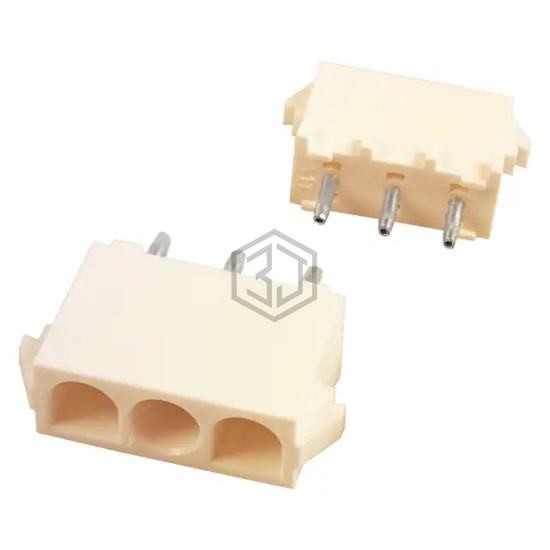

350760-5 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN HDR 3POS 0.25 GOLD PCB. Key specifications: mounting type Through Hole, termination Solder, number of positions 3, connector type Header.
In Stock: 3,012
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.250" (6.35mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Natural |
| Insulation Height | 0.550" (13.97mm) |
| Contact Length - Post | 0.155" (3.94mm) |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-2 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 350760-5 and get a quote within 24 hours.
