TE Connectivity AMP Connectors

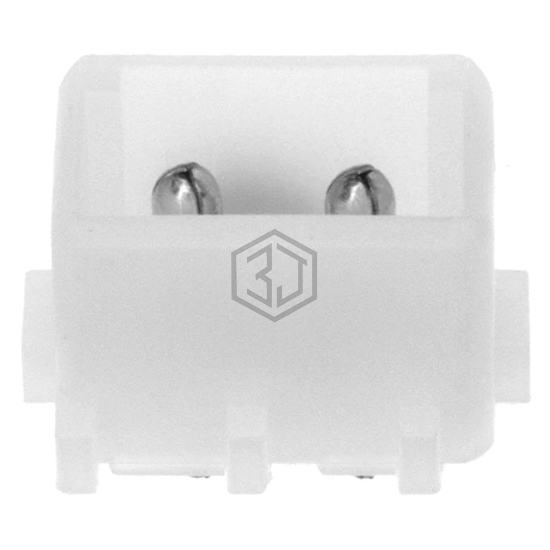

CONN HEADER VERT 2POS 5.08MM
350209-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 2POS 5.08MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating 250VAC, contact material Copper Alloy.
In Stock: 6,924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Contact Length - Mating | 0.181" (4.60mm) |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | - |
| Insulation Height | 0.375" (9.53mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Insulation Color | Natural |
| Current Rating (Amps) | 12A |
| Voltage Rating | 250VAC |
Submit your RFQ for 350209-1 and get a quote within 24 hours.
