TE Connectivity AMP Connectors

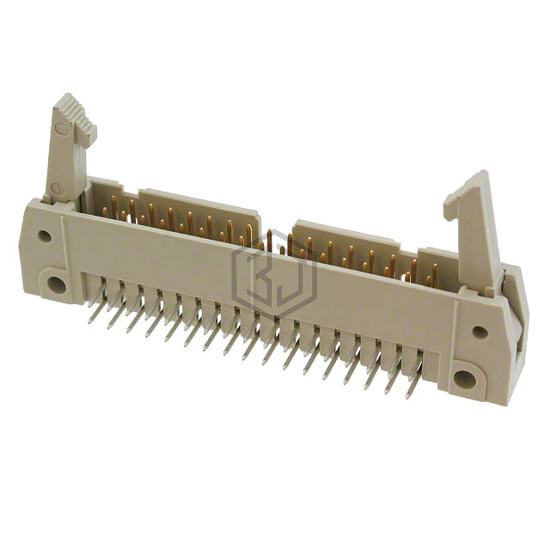

CONN HEADER R/A 34POS 2.54MM
3-828586-4 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER R/A 34POS 2.54MM. Key specifications: mounting type Through Hole, Right Angle, termination Solder, number of positions 34, connector type Header.
In Stock: 67
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | - |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Contact Finish - Post | - |
| Contact Material | - |
| Insulation Material | - |
| Features | Keying Slot, Mounting Flange |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 3-828586-4 and get a quote within 24 hours.
